1、Equipment Overview
HKV151 type is applicable to produce overfeed-type and control-type fancy yarn with cotton, wool, finished product is mainly used for weaving. Controlled by PLC, the machine features simple operation and convenient changing of fancies. The center thread and molding are formed through controlling rollers, fast knoting equipment, lower false spindle, take-up roller and winding drum. Among the fancy yarn equipment, this machine is an ideal model.
2、PRODUCT FEATURES
Open type of spindle, the operation is simple, the volume of feed.
Each roller, spindle, false twisting, coiling separate variable frequency speed control, PLC program control, convenient operation, accurate process.
Unique comb section device, with independent patent property rights, production of bamboo products yields more than double, multiplied improve production efficiency.
Three layers of the yarn, to adapt to the more raw material feeding.
3、User selectable components
Four layers of the yarn: adapt to more raw material feeding.

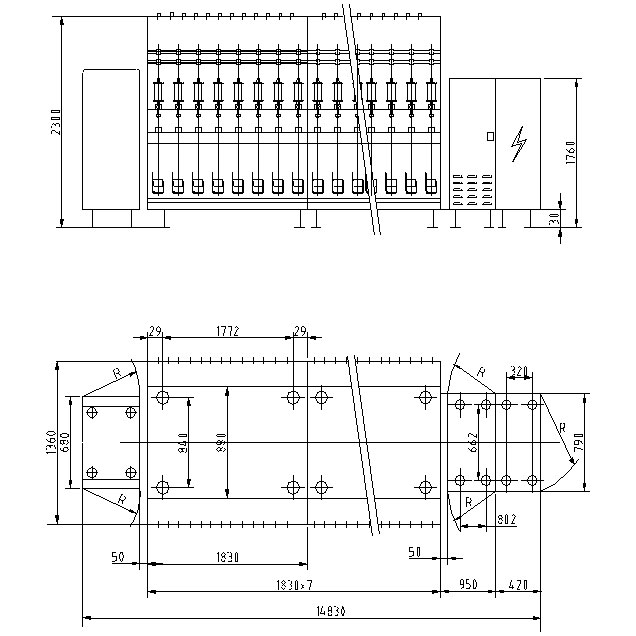

4、 DIAMENSION DRAWING
