ST Series server cabinet


Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3045.2-92 standard, compatible with ETSI standard.

Feature of Product

1、Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3045.2-92 standard, compatible with ETSI standard.
2、The installation column is continuously adjustable, and is flexible and adaptable to the installation of 19-inch servers of various specifications.

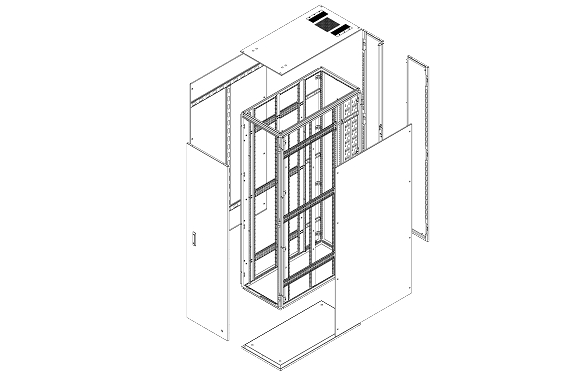

3、The frame is integrally welded by a one-rolled profile of a roll forming, and the structure is firm.
4、The front and rear doors are high-density hexagonal mesh placement doors to meet the heat dissipation requirements of high-power equipment.
5、Separate design of strong and weak electric wiring to ensure the safe operation of equipment.
6、Available in a variety of sizes and sizes, flexible configurations for different application needs.
7、Complete accessories to meet the needs of different users.


Technical indicators

1、Mounting column with 2.0mm high quality cold rolled steel plate
2、Static load 2000Kg
3、Anti-seismic intensity level 9
4、Mesh door ventilation rate 73.5%
5、Product protection grade IP20
6、Surface treatment: degreasing, pottery, electrophoresis / electrostatic spray


42U server cabinet

Serial number

Model

Height

Depth

Width

1

JMFG-ST-6042

2000mm

1000mm

600mm

2

JMFG-ST-6142

1100mm

3

JMFG-ST-6242

1200mm

4

JMFG-ST-8042

1000mm

800mm

5

JMFG-ST-8142

1100mm

6

JMFG-ST-8242

1200mm

47U server cabinet

Serial number

Model

Height

Depth

Width

1

JMFG-ST-6045

2200mm

1000mm

600mm

2

JMFG-ST-6145

1100mm

3

JMFG-ST-6245

1200mm

4

JMFG-ST-8045

1000mm

800mm

5

JMFG-ST-8145

1100mm

6

JMFG-ST-8245

1200mm

54U server cabinet

Serial number

Model

Height

Depth

Width

1

JMFG-ST-6054

2500mm

1000mm

600mm

2

JMFG-ST-6154

1100mm

3

JMFG-ST-6254

1200mm

4

JMFG-ST-8054

1000mm

800mm

5

JMFG-ST-8154

1100mm

6

JMFG-ST-8254

1200mm

Note: When the custom U-bit specification is 1U+2mm=46.45mm, the available space is adapted to: 40U/45U/52U
