HKV132A (B) type large package twister
This machine is suitable for twisting chemical fabric such as polyester, dacron etc yarn with size 75D～1500D, it also can install head-off automatic lifting device. The machine design is brand new, which is suitable for big capacity, low twisting degree, high line speed twisting.。Its finished products is widely used in bag material, industrial fabric, garment material
1、Equipment Overview
This machine is suitable for twisting chemical fabric such as polyester, dacron etc yarn with size 75D～1500D, it also can install head-off automatic lifting device. The machine design is brand new, which is suitable for big capacity, low twisting degree, high line speed twisting.。Its finished products is widely used in bag material, industrial fabric, garment material
2、Product Features

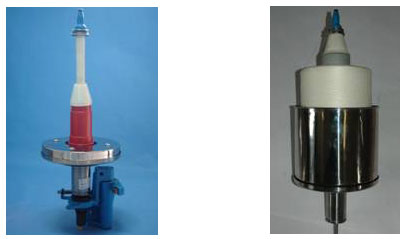

①Adopts swing open type brake; also it has multi-pole steel ball type tensioner, which meet the requirement of different spindle speed and different size; Also it can choose anti-rust big capacity yarn stocking container, ensure the air ring is even and flowing. Adopt Imported bearing to strength the anti-vibration system, make the max feeding 5kg yarn. It has 2 kinds of spindles for option.
②This machine’s forming box consists of guide yarn forming, twist degree change, winding yarn degree match, S,Z change, suitable for max back/front yarn guide for 65/min, max take-up line speed 120m/min.
③Adopts stable aluminum bobbin and anti-vibration spring, so that can ensure the quality of forming. ф69× ф57 × ф230mm或ф69× ф57 × ф290mm optional.
④This machine adopts punching type bar shape over-feeding roller disk, after treatment at the surface, it has long-time durability The machine adopts single motor to drive the all the parts of the equipment, which could ensure the in-phase operation of all the parts, so that can ensure the stability of twist-degree and tension, reduce the quality problem caused by this.
3、User selectable components
①Stainless steel yarn storage barrel: is suitable for the raw material, production under 70 d effectively ensure the gas unwinding circle is smooth.
②Main motor frequency conversion function: speed regulation is convenient and reliable.
③Yarn breaking automatic lifting device: effectively prevent yarn break, package surface and the friction roller friction for a long time and make the surface temperature and oxidation, make the yarn strength decreased obviously.
4、DIAMENSION DRAWING
ITEM | HKV132A-96 | HKV132A-120 | HKV132B90 |
TPPE | DOUBLE SIDE AND SINGLE LAYER | ||
Spindle | 96 | 120 | 90 |
Distance of spindle | 320mm | 375mm | |
section dimension | 1320mm | 1160mm | |
size take-up pipe | φ68×φ57×230 | φ68×φ57×290 | |
Max.capacity of take-up | ≤2kg | ≤3.5kg | |
Size of feeding pipe | φ68×φ57×290 | ||
Max.dimeter of take-up pipe | φ220mm | ||
Max. feeding capacity | ≤4kg | ||
| Fiber number | 78~600Dtex | ||
Motor power | 22kw | ||
spindle speed | 3600~7300 rpm | ||
twist degree | 80~944T/M | ||
producing speed | ≤120m/min | ||
twisting direction | S、Z | ||
