HKV141D is mainly suitable for covering spandex 70D~600D different specification.raw material such as polyester, nylon,cotton yarn, it has featyre of spectacular, easy for operation, energy saving etc, the final covering yarn is widely used in wool sweater, knitting, flexible fabric weaving area etc.

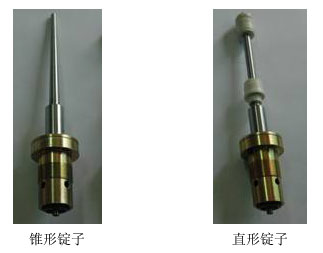

This machine can provide user with multi-specification structures spindles, can be suitable for producing different, it is easy and fast to replacing.
The machine can be option the computer forming system, this system will take fast taking up speed, and yarn forming will become better, and esay to rewinding.
The overall welded frame, strong and stable, fast installation, simple, fully meet the demands of high speed.
It adopts advanced electric components such as digital control device, which can monitor the operating data of equipment in real time, also it is equipped with motor overheated protection device, double protection motor, which can ensure the safety both of people and machine.
On the lower end of the machine, with the active spandex yarn feeding parts, nylon roller, roller grooved used can effectively prevent the spandex skid, ensure the accuracy of the drafting ratio.
The machine head has 2 sets of motor, driving the spindles for rotating on lower and upper layers, so that it can realize the function of changing the S,Z twisting at once, especially when making the double covering, it can change the spindle speed according to change the belt pulley, ensure the balance of in and out layer’s yarn covering.
At the both sides of machine, it is set with foot board, it can dispatch the bobbin in a short time, which could effectively improve the working efficiency.
3、THE USER CAN SELECT PARTS
Main motor inverter: easy adjustment of spindle speed, simple and accurate
Transverse micro device: effectively prevent the press pulley groove, ensure uniform twist
4、DIMENSION AND FOUNDATION DRAWING OF POURING REQUIREMENTS
